You’ve heard it a thousand times!
You should be paying attention to your bounding boxes!
Honestly, you and I both know nobody’s got time to check their bounding boxes, if they want to grow, who are we to tell them no?
But! What if I told you we can use the BBOX to be lazy, wouldn’t that be great?!
OK, allow me to set the scene.

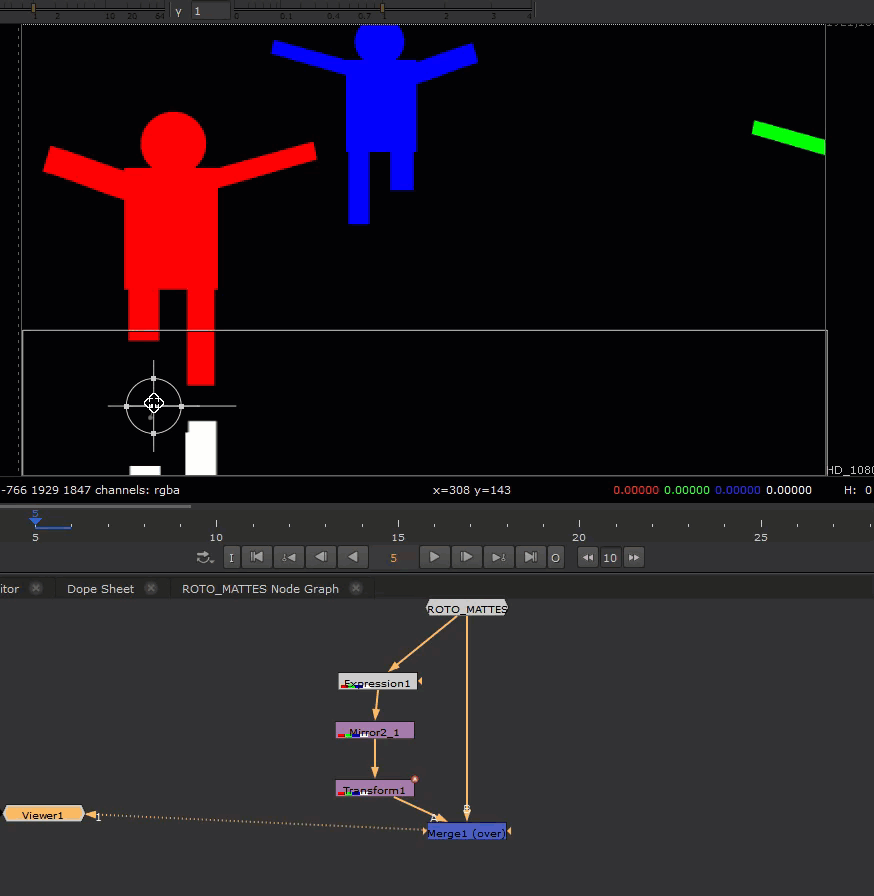

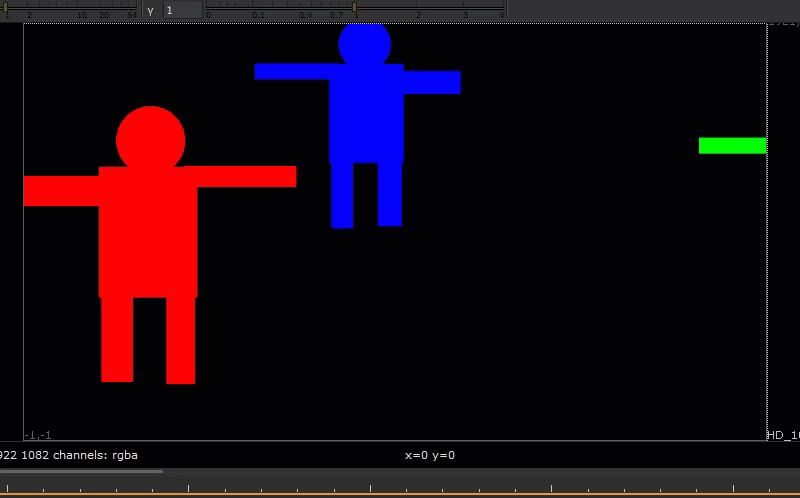

You have just been assigned a shot with three characters dancing around merrily, and your task is to replace the dirt ground they were filmed on with a reflective futuristic cyberpunk dance floor.
You see that you have roto mattes for these three characters.
You are glad.
Until, you have to recreate their shadows and reflections.
A hard working compositor would split each of these characters into their own channel, make a mirror reflection vertically, and animate a transform to attach the reflection back to the original.
But a lazy compositor would never do something like this!
A lazy compositor would use the BBOX to automate this task.
Here’s how!

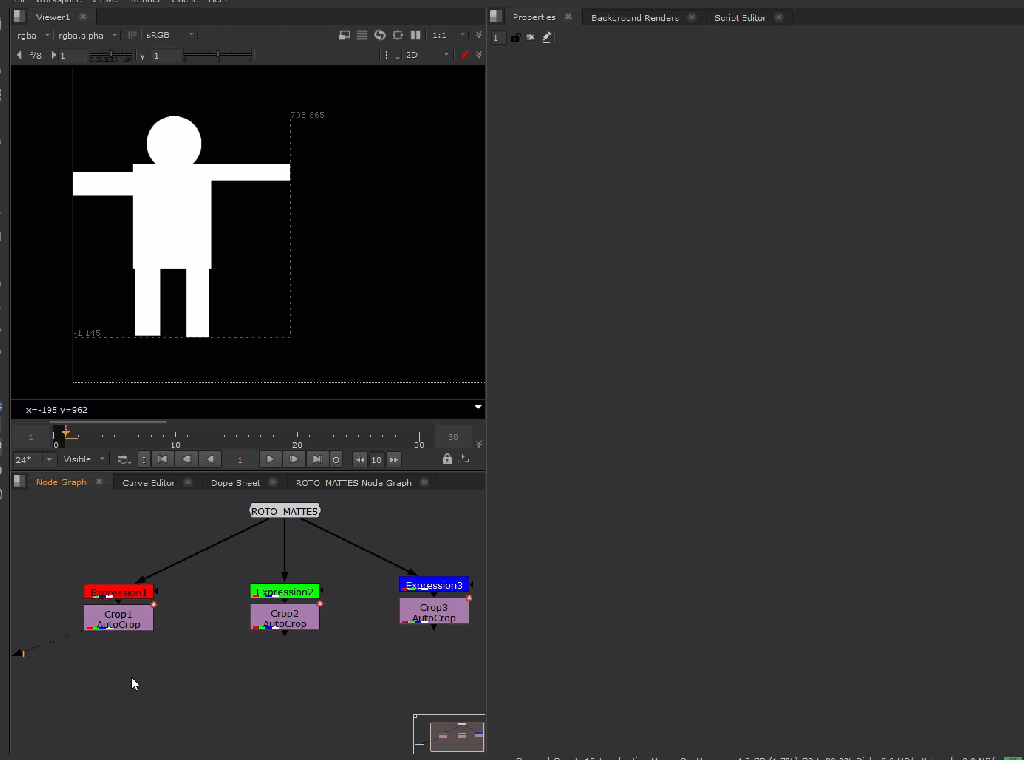

First, we need to extract each character’s bounding box.
We can do this by splitting them into their own individual layers and running the ‘autocrop’ TCL command.
You can bring up the command dialog box by pressing ‘X’ in the DAG context.
Now that we have each character’s BBOX, we can use the attributes of the BBOX to calculate the pivot point where we’re going to mirror our character vertically.
BBOX attributes? What are those you say?
I’m talking about ‘xyrt’!
x = left bound of the bbox
y = bottom bound of the bbox
r = right bound of the bbox
t = top bound of the bbox
Each of these are simply a point on a cartesian plane.
Which means, we can use some quick math to find the bottom center of the BBOX.

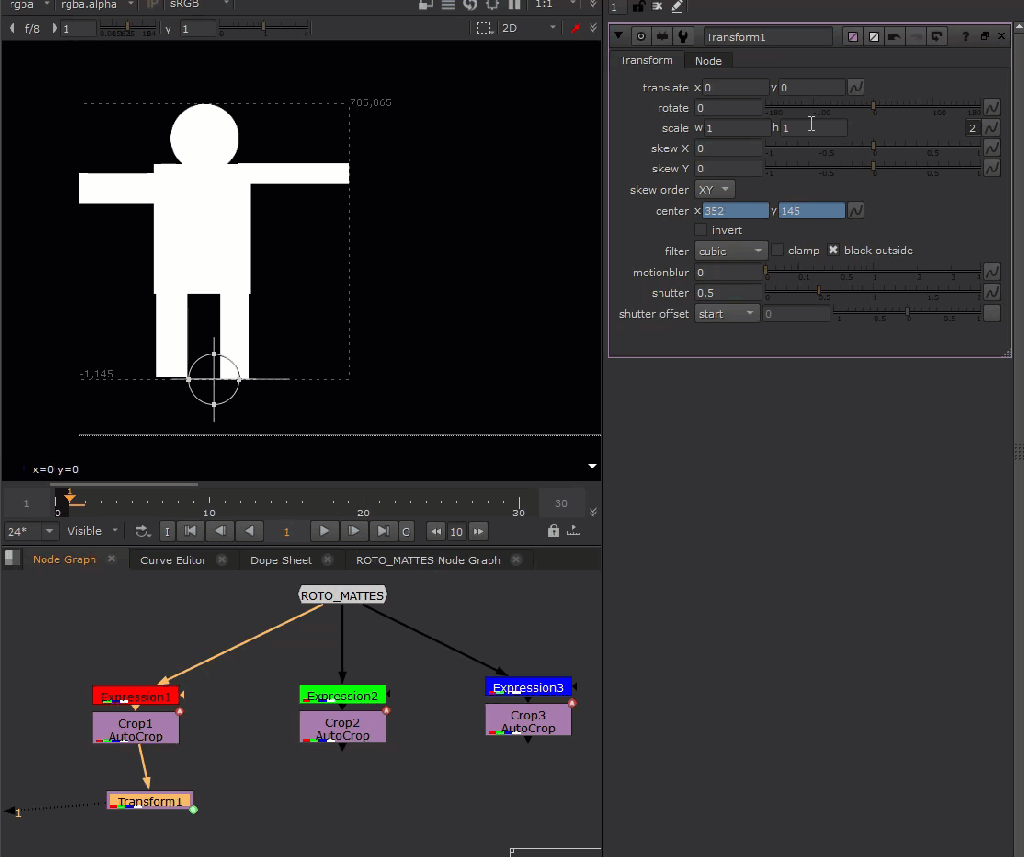

Let’s drop down a Transform node, and enter these expressions into the X and Y components of the ‘center’ knob and hook it up to the character:
bbox.r – (bbox.r – bbox.x)/2
bbox.y

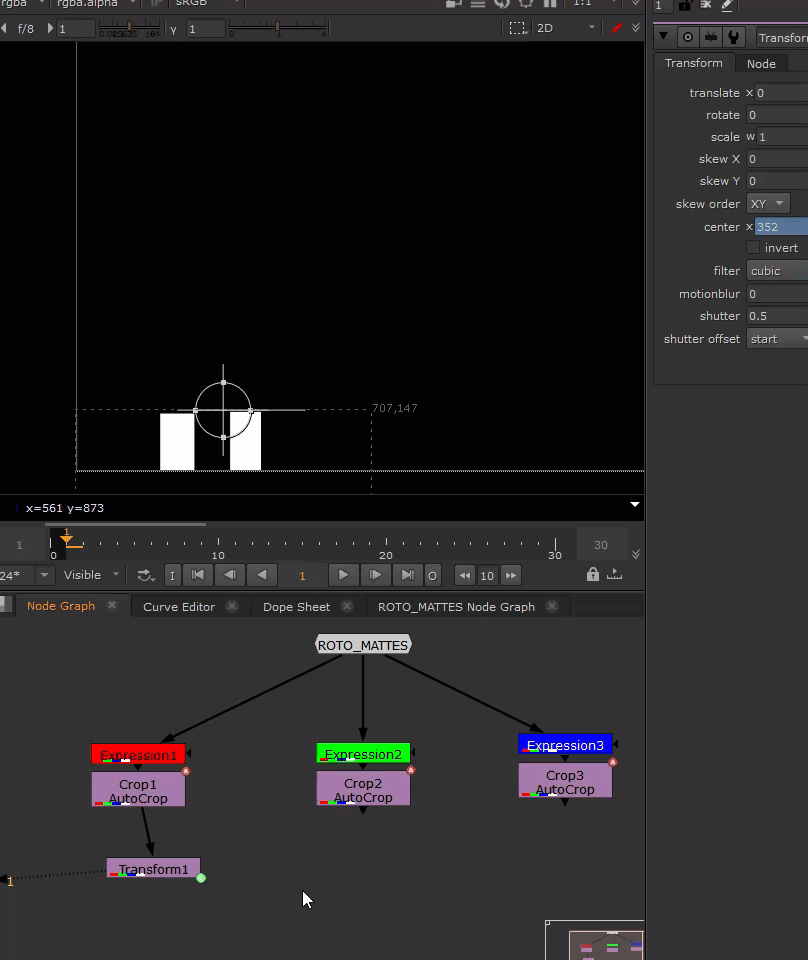

You will see that the Transform’s center has now snapped to the center bottom of our character!

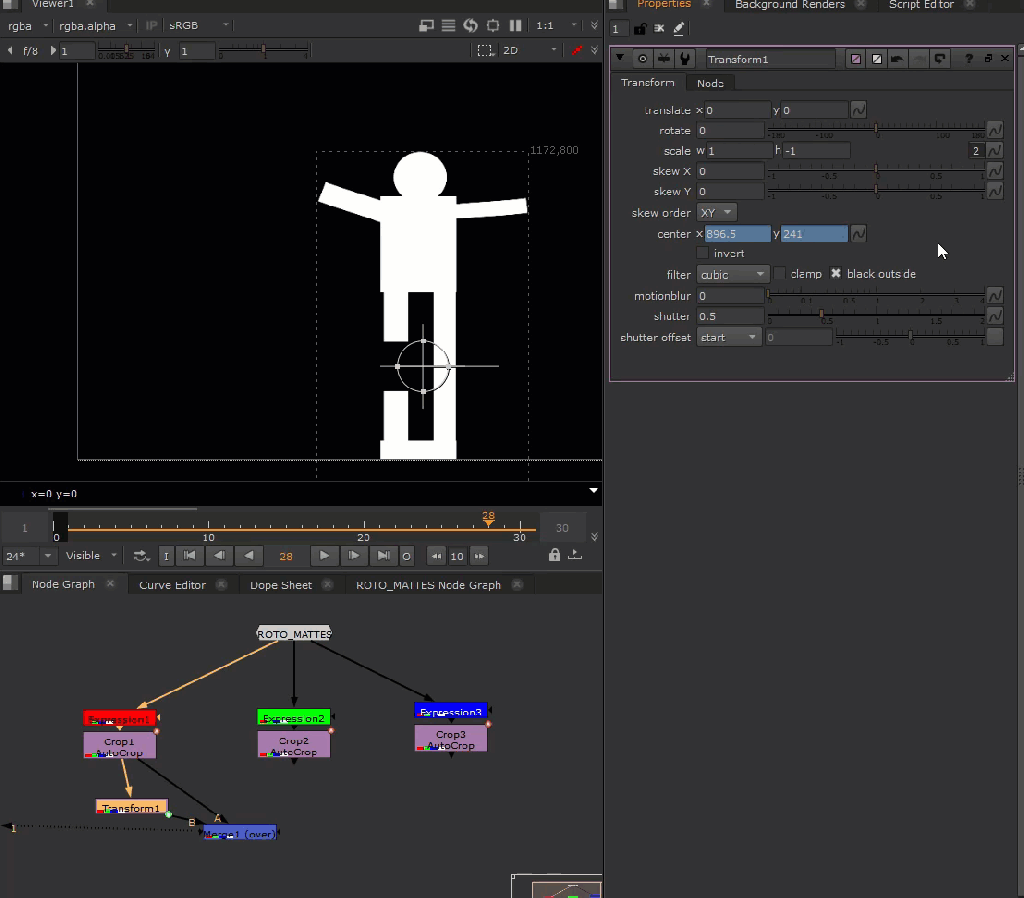

Next, let’s mirror our character by setting the scale Y in our Transform node to -1.

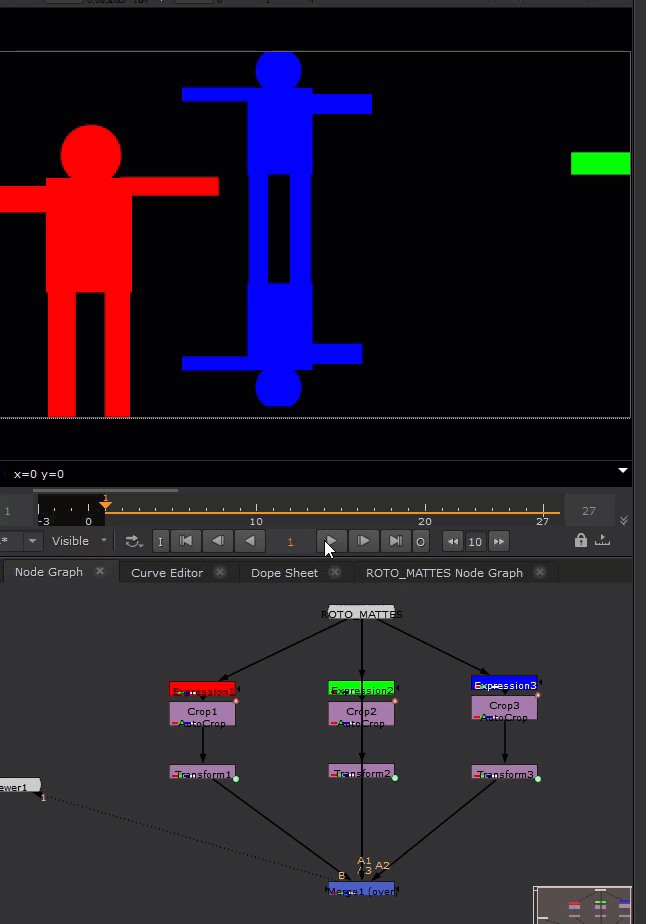

And let’s merge the reflection with the original character and hit play to see the result!
Rejoice!
Next, let’s set up a little controller for offsetting our reflection in Y.
Then, let’s copy and paste the Transform node to each of our characters and watch them party!
But we’re not done! What if we want to have finer control over our shadow/reflections?

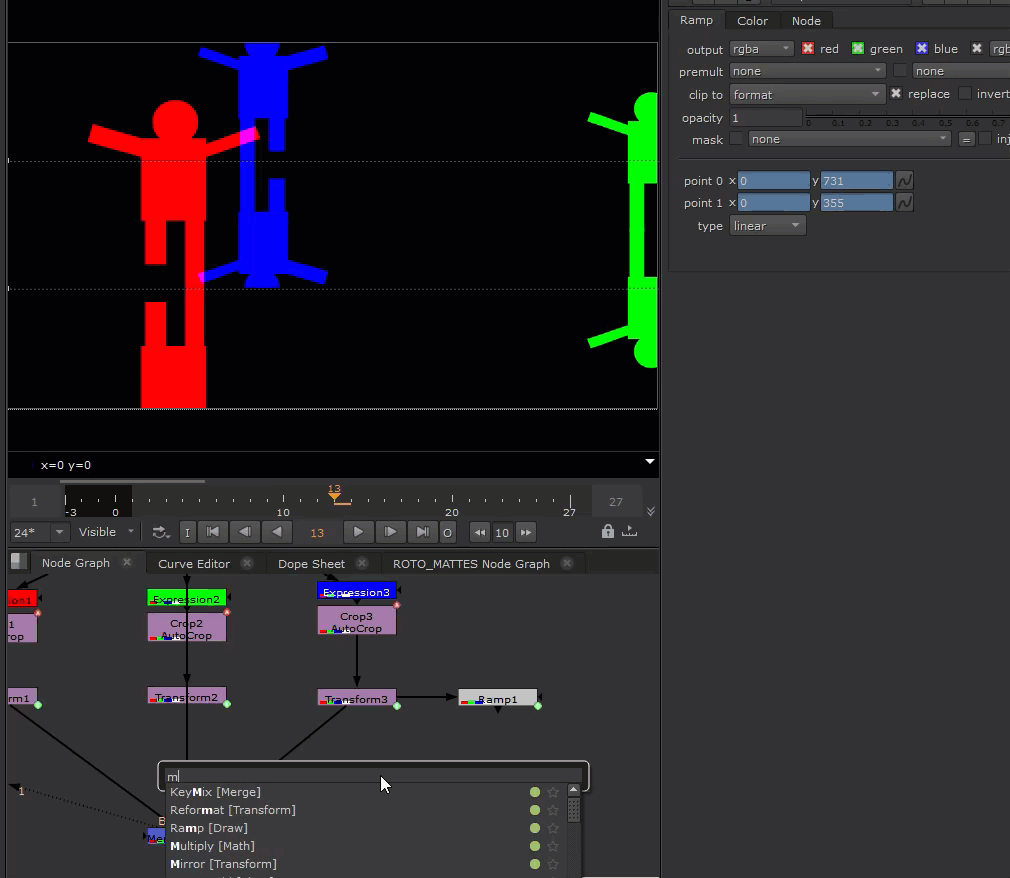

So, let’s create a little ramp to mult down the opacity of our reflections.

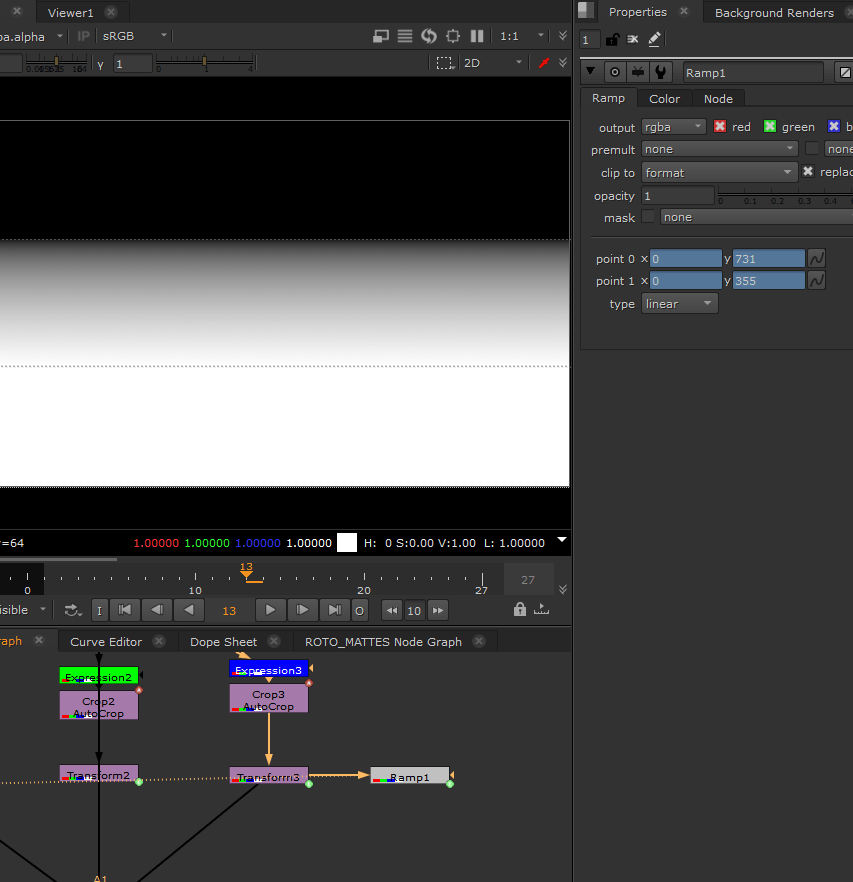

Make a ramp node, and connect it up to the reflection, toggle on ‘replace’ as we don’t need the original reflection baked into our ramp.
Next, we set the ramp’s point0 and point1’s Y value to the top bound and bottom bound of the BBOX.
The ramp now goes from 0 to 1 from the base of our reflection.
We can then use this as a mask for a multiply node.

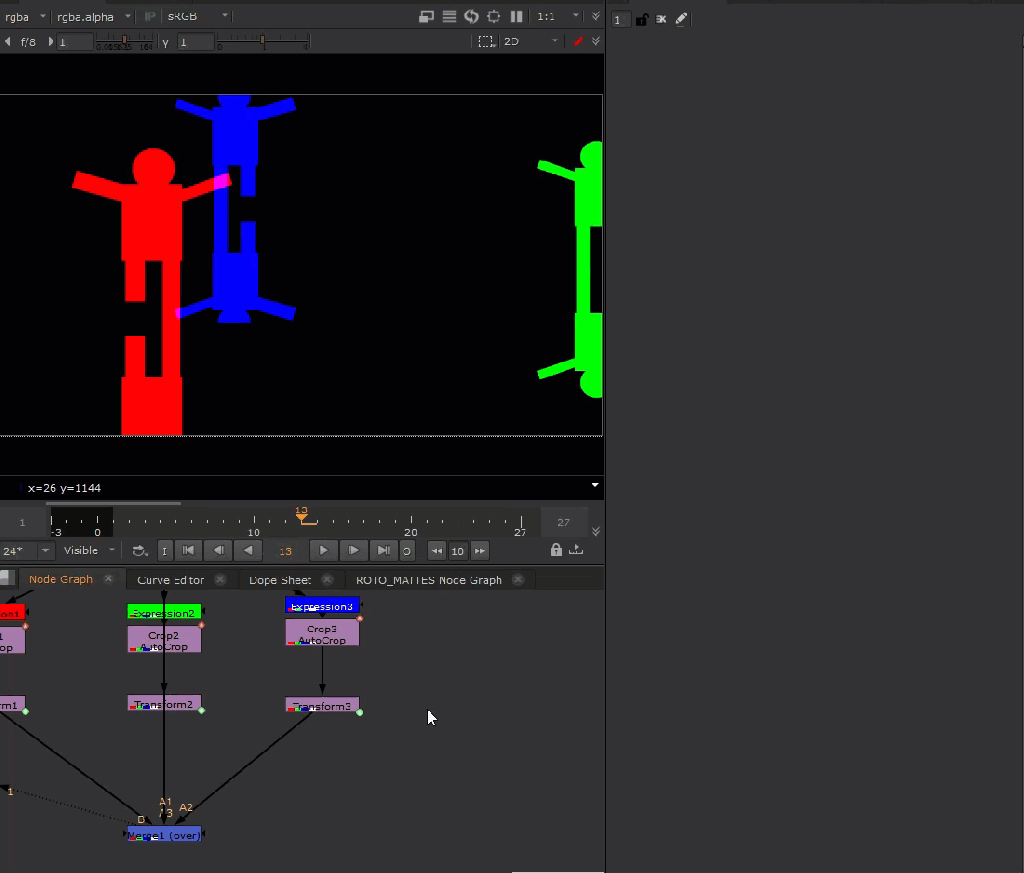

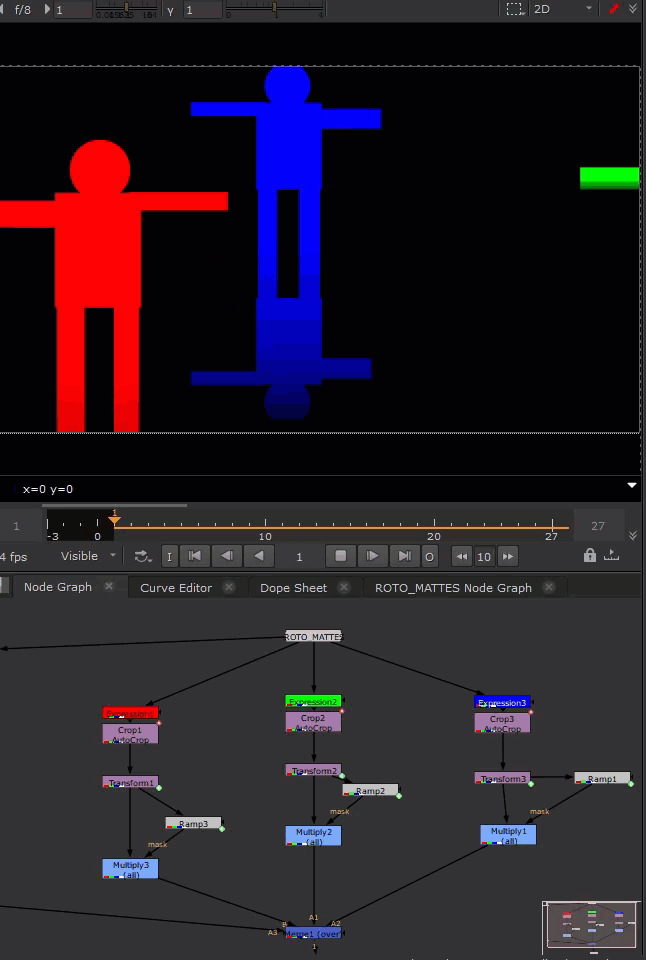

Let’s duplicate this to the other characters to see the final result!
I’d like to point out here that if you have characters coming in or disappearing off of screen, the bounding box calculations will be incorrect for those frames. You can see this error in our example here:
For unfortunate cases like these, we’d have either manually adjust those frames, or if we have overscanned roto ( I have never had overscanned roto lol), we can use a CurveTool with to calculate the autocrop data with a large enough ROI setting to accommodate for the overscan.
And at last, if you want to be an even LAZIER compositor, you can use this little Python script to automatically autocrop multiple nodes in one go!
def autoCrop():
"""
Basic Autocrop that operates on more than one selected read node
"""
try:
first_frame = int(nuke.root().knob('first_frame').getValue())
last_frame = int(nuke.root().knob('last_frame').getValue())
f_range = nuke.getInput("Frame Range To Calculate?\n\nExample: 1001-1230", str(first_frame) + "-" + str(last_frame))
if len(f_range.strip()) == 0:
nuke.message("Empty frame range.\n\nGave up!")
return
for char in f_range:
if char.isalpha():
nuke.message("Invalid characters.\n\nPlease format like this:\n1001-1230")
return
f_range_split = f_range.split('-')
f_first = int(f_range_split[0])
f_last = int(f_range_split[1])
layer = 'alpha'
for n in nuke.selectedNodes():
nukescripts.autocrop(f_first, f_last, 1, layer)
except AttributeError:
nuke.message('Invalid Range.\n\nGave up!')
returnAnd that concludes this article.
I hope you enjoyed reading it and have learned something new to help you be more lazy!
Nuke script pasted below!
